Graco Dyna-Star XT (2009845) Electric Operated Grease Pump

Electrify your lubrication system with Dyna-Star XT – the electric lubrication pump with XT Motor technology designed for heavy-duty mining equipment and industrial applications.

The Graco Dyna-Star XT (2009845) electric pump is a direct, drop-in replacement for pneumatic pumps in its class, delivering an immediate boost in both performance and efficiency. The Dyna-Star XT provides consistent high-pressure lubrication while eliminating common pneumatic pump limitations, resulting in improved equipment uptime and greater operational sustainability.

Features and Benefits:

• Electric drive eliminates issues from dirty air, icing, and inconsistent output.
• Maintains consistent flow regardless of back pressure.
• Delivers up to 15× more torque and 8× more magnets than standard electric motors for maximum efficiency.
• Lower operating speeds extend motor life and reduce wear.
• Quieter operation improves the working environment.
• Easier repairability than comparable pneumatic pumps ensures higher long-term ROI.

Technical Specifications:

– Application: Industrial & Lubrication
– Wetted Parts Material: Steel, Stainless Steel, Bronze, UHMWPE, Aluminium & Buna
– Cycle Rate (Maximum): 30 cycles per minute
– Power Source: Electric (100-120V)
– Working Pressure (Maximum): 7,000 (psi) / 483 (bar)
– Fluid Output: 2.1 cu in. per cycle / 34.4 cc per cycle
– Operating Temperature (Maximum): 40 (°C)
– Fluid Outlet: 3/4″ NPT

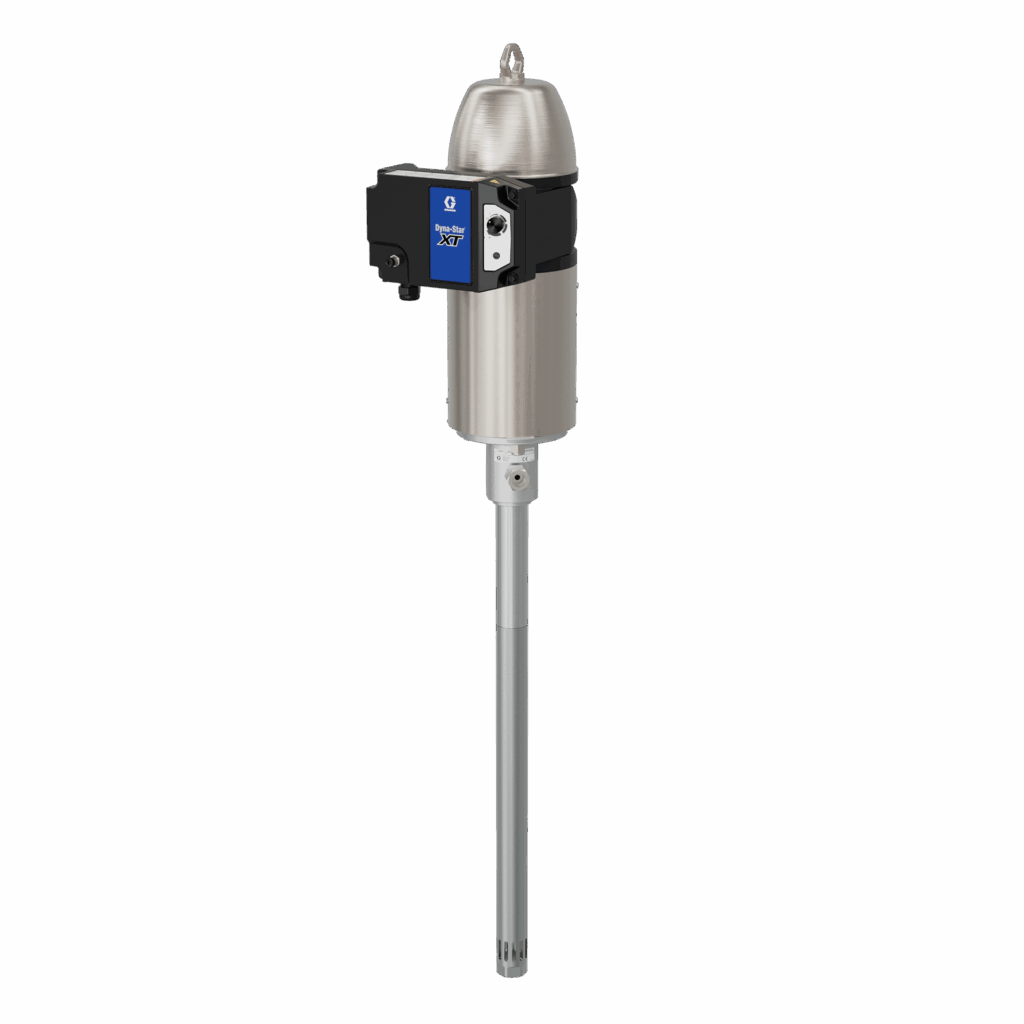

Image is for illustrative purposes only.

Graco Dyna-Star Pumps

Graco Chemical Compatibility Guide

Parts and Repair kits:

Seal Kit: 2009432
Fluid Piston Kit: 25T855
Pump Lower Kit: 2010555
Outlet Housing Kit: 2009507
Complete Rotor Repair Kit: 2011186

If you’re still unsure which pump or repair kit you require, then please contact our dedicated team. You can reach us on 01457 866 926 or pumps@fes-ltd.co.uk.
