Graco QUANTM h30 1″ Hygienic Electric Operated Double Diaphragm Pump 380-480V – HE30-1061

Graco QUANTM h30 (HE30-1061) 1″ Hygienic Electric Operated Double Diaphragm Pump

The Graco QUANTM h30 is not just another electric pump: it is a game-changer. Featuring the revolutionary FluxCore drive, it will reduce energy usage and costs by up to 80%.

The Graco QUANTM h30 (HE30-1061) meets the growing demand for clean energy and sustainable technologies. It has been engineered to be more efficient, quieter and a drop in replacement for existing pneumatic pumps. It provides the ideal solution for factories or manufacturing plants focused on meeting sustainability goals and it will pay for itself in 12months or less. Don’t just take one small step to a better facility, leap into the future with QUANTM.

Graco food-grade pumps are our most popular option for general food transfer. The new QUANTM all-stainless-steel electric pumps feature a 125 Ra surface finish and are certified for a wide range of food, beverage, and select personal care products. From dressings, sauces, oils, and syrups to soaps, creams, and solvents, QUANTM pumps deliver reliable performance for nearly any hygienic application.

Features and Benefits:

• Overall improved efficiency – Up to 80% more efficient when compared to pneumatic pumps
• Meets the growing demand for clean energy and sustainable technologies
• Reduces energy usage and costs by up to 80%
• It stalls under pressure (unique to the market), eliminating the need for pressure sensors and additional controls
• It is also: self-priming, runs dry and has a seal-less design
• Patented FluxCore drive removes the gearbox, providing a drop in replacement to the Husky range with it’s plug-and-play design
• Quiet operation reduces plant noise and improves employee health and safety
• 8 times more continuous torque at low speeds than conventional motors
• Control flow and pressure on the pump, or set up for remote operation

Technical Specifications:

– Application: Industrial (ATEX)
– Centre Section Material: FEP Coated Aluminium
– Fluid Section Material: Stainless Steel (Food Grade)
– Surface Finish: 125 Ra
– Seat Material: 316 Stainless Steel
– Ball Material: PTFE
– Diaphragm Material: PTFE/EPDM Overmould
– Seal Material: PTFE
– Fluid Inlet Size: 1″ (25.4mm)
– Tri-Clamp Connection Size: 1.5″ (38.1mm)
– Power Source: Electric (380-480V – 3-Phase – Flying Leads)
– Cord Length: 15 (ft) / 4.57 (m)
– Fluid Pressure (Maximum): 100 (psi) / 6.9 (bar)
– Flow Rate (Maximum): 114 (L/min)
– Fluid Operating Temperature (Maximum): 82 (°C)
– Solid Size (Maximum): 3.2 (mm)
– Porting: End Port – DIN
– Configuration Number: QHC-FGFFASSPTPOPTS140021

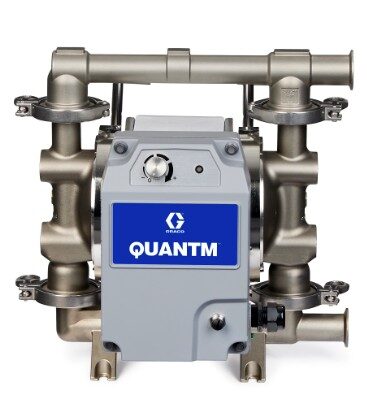

Image is for illustrative purposes only.

Graco QUANTM Pumps

Graco Chemical Compatibility Guide

Parts and Repair kits:

Seat Kit: 25A276
Ball Kit: D07010
Diaphragm Kit: 25V219
Complete Fluid Repair Kit: 25V237
Rotor Kit: 25F122

If you’re still unsure which pump or repair kit you require, then please contact our dedicated team. You can reach us on 01457 866 926 or pumps@fes-ltd.co.uk.
