Graco Fire-Ball 300 15:1 Piston Pump – 55kg Drum – 206699

Graco Fire-Ball 300 (206699) 15:1 Piston Pump – 55kg Drum

For over 60 years, the Graco Fire-Ball has been the industry’s go-to pump, earning a reputation that’s second to none. Engineered for longevity with fewer moving parts, this flagship Graco pump is designed to maximize uptime and keep operations running at peak productivity. Built for the long haul, Fire-Ball pumps are legendary for their durability, with units installed decades ago still performing reliably and efficiently today.

The Graco Fire-Ball 300 (206699) air-operated piston pumps and packages are perfect for high pressure oil/grease dispense and transfer.

Features & Benefits:

The Graco Fire-Ball Piston pump is built to last. With so many innovative maintenance-saving features, Graco pumps reduce downtime and save you money. No matter what fluid you’re pumping Graco has a quality solution for your low, medium or high volume application.

• Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
• Fewer moving parts in the air motor assembly means less downtime and a low repair cost.
• Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Large air porting design provides efficient use of compressed air supply for continuous pump operation with reduced icing.
• Thick cast aluminum air motor housing offers unmatched durability.
• Non-metallic poppet valves offer positive sealing performance, even with contaminated ‘dirty’ air environments for long life without repair.
• Install the Fire-Ball Piston Pump 300 in high pressure, medium volume oil and grease dispense applications such as automotive dealerships, fast lube centers, and service shops.
• A three inch differential air motor ensures smooth pumping and the smooth double-acting pump design provides reliable fluid flow and accurate dispense.

Technical Specifications:

– Application: Industrial
– Ratio: 15:1
– Wetted Parts: Carbon Steel, Brass, Copper, Aluminium, PTFE, Nitrile Rubber, Leather
– Compatible Material: Grease, Rustproofing, Undercoating
– Fluid Inlet Size: 1″npt (25.4mm)
– Fluid Outlet Size: 1/4″npt (6.35mm)
– Air Inlet Size: 3/8″npt (9.525mm)
– Power Source: Air
– Air Input Pressure (Maximum): 180 (psi) / 12 (bar)
– Working Pressure (Maximum): 2700 (psi) / 186 (bar)
– Pump Speed (Maximum Recommended): 66 (cycles/min)
– Flow Rate (Maximum Recommended): 2.65 (l/min)

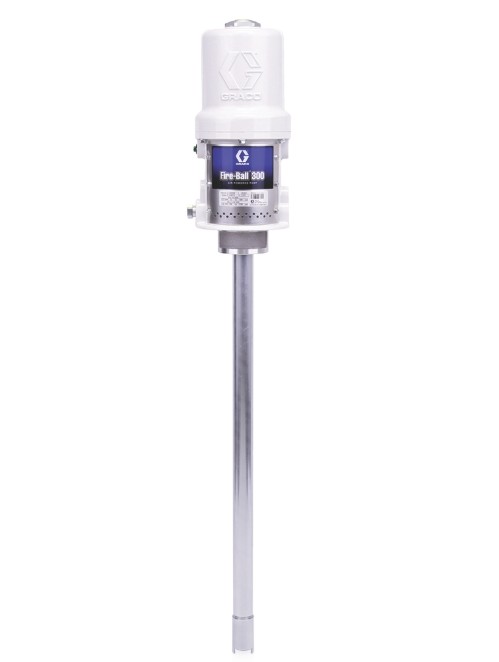

Image is for illustrative purposes only.

Graco Fire-Ball Pumps

Graco Chemical Compatibility Guide

Parts and Repair Kits:

Muffler Kit: 222559
Seal Kit: 206925
Air Motor Kit: 206728

If you’re still unsure which pump or repair kit you require, then please contact our dedicated team. You can reach us on 01457 866 926 or pumps@fes-ltd.co.uk.
