Graco Husky 515 1/2″ Air-Operated Double Diaphragm Pump (NPT) – D52911

Graco Husky 515 1/2″ Air-Operated Double Diaphragm Pump (NPT) – D52911

The Graco Husky 515 air-operated double diaphragm pumps are loaded with features to help you get the job done right, every time, and are built to save you money.

The Graco Husky 515 (D52911) air-operated diaphragm pump features a stall-free low pulsation air valve.  This valve provides a smooth and rapid changeover. The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Features & Benefits:

– Centre and end porting options
– No mechanical seals to cause fluid leaks or failures
– 1/2″ (12.7mm) centre and end porting
– Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
– Easy-to-service air valve and ball checks
– Operates on as little as 1.4bar (20psi)

Technical Specifications:

– Application: Industrial
– Centre Section Material: Polypropylene
– Fluid Section Material: Polypropylene
– Seat Material: Polypropylene
– Ball Material: PTFE
– Diaphragm Material: PTFE
– Fluid Inlet Size: 1/2″ (12.7mm)
– Air Inlet Size: 1/4″ (6.35mm)
– Power Source: Air
– Air Pressure (Maximum): 100 (psi) / 7 (bar)
– Flow Rate (Maximum): 57 (L/min)
– Operating Temperature (Maximum): 66 (°C)
– Solid Size (Maximum): 2.4 (mm)
– Porting: End Port/Centre Port
– Configuration Number: 515P-P01AP3PPPTPTPT

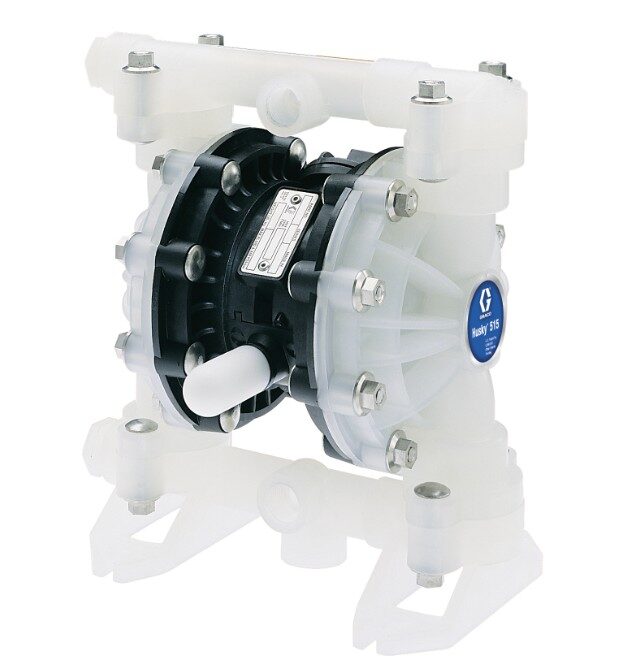

Image is for illustrative purposes only.

Graco Husky Pumps

Graco Chemical Compatibility Guide

Parts and Repair Kits:

Valve Seat Kit: D05900
Valve Ball Kit: D05010
Diaphragms Kit: D05001
Air Section Repair Kit: 241657
Complete Fluid Repair Kit: D05911

If you’re still unsure which pump or repair kit you require, then please contact our dedicated team. You can reach us on 01457 866 926 or pumps@fes-ltd.co.uk.
